Prerequisites

  • Node.js and npm installed
  • Basic understanding of React and Web3 development
  • An Aarc API key
You need to get your contract address whitelisted with Aarc. Contact our support team to request whitelisting.

​
Quick Start

  1. Create a new Vite React project:
npm create vite@latest my-cross-chain-deposit -- --template react-ts
cd my-cross-chain-deposit
  1. Install required dependencies:
npm install @aarc-xyz/fundkit-web-sdk @aarc-xyz/eth-connector @rainbow-me/rainbowkit wagmi viem ethers @tanstack/react-query
  1. Create a .env file with your Aarc API key:
VITE_AARC_API_KEY=your_api_key_here

​
Implementation Guide

​
1. Setup Aarc Configuration

Create a configuration file for Aarc’s FundKit SDK:
import { FKConfig, ThemeName, SourceConnectorName } from "@aarc-xyz/fundkit-web-sdk";

export const aarcConfig: FKConfig = {
  appName: "Cross-Chain Deposits",
  module: {
    exchange: { enabled: true },
    onRamp: { enabled: true },
    bridgeAndSwap: {
      enabled: true,
      fetchOnlyDestinationBalance: false,
      routeType: "Value",
      connectors: [SourceConnectorName.ETHEREUM],
    },
  },
  destination: {
    contract: {
      contractAddress: "YOUR_CONTRACT_ADDRESS",
      contractName: "Cross-chain Deposit Contract",
      contractGasLimit: "300000",
      contractUri: "https://example.com/image.png/"
    },
    chainId: "DESTINATION_CHAIN_ID",
    tokenAddress: "DESTINATION_TOKEN_ADDRESS" // token in which the deposit is collected
  },
  appearance: {
    theme: ThemeName.DARK,
    roundness: 42,
  },
  apiKeys: {
    aarcSDK: import.meta.env.VITE_AARC_API_KEY,
  },
};

​
2. Create the Deposit Component

import { useState } from 'react';
import { useAccount } from 'wagmi';
import { ethers } from 'ethers';
import { AarcFundKitModal } from '@aarc-xyz/fundkit-web-sdk';

export const DepositComponent = ({ aarcModal }: { aarcModal: AarcFundKitModal }) => {
  const [amount, setAmount] = useState('20');
  const { address } = useAccount();
  const [isProcessing, setIsProcessing] = useState(false);

  const handleDeposit = async () => {
    if (!address) return;

    try {
      setIsProcessing(true);

      // Create contract interface
      const contractInterface = new ethers.Interface([
        "function deposit(bytes32 address, bytes32 amount) external payable"
      ]);

      // Generate deposit payload
      const contractPayload = contractInterface.encodeFunctionData("deposit", [
        address,
        amount
      ]);

      const value = ethers.parseUnits(amount, 18).toString();

      // Update Aarc configuration
      aarcModal.updateRequestedAmount(Number(amount));
      aarcModal.updateDestinationContract({
        contractPayload,
      });

      // Open Aarc modal
      aarcModal.openModal();
      setAmount('');
      setIsProcessing(false);
    } catch (error) {
      console.error("Deposit error:", error);
      setIsProcessing(false);
      aarcModal.close();
    }
  };

  return (
    <div className="deposit-container">
      <input
        type="text"
        value={amount}
        onChange={(e) => setAmount(e.target.value)}
        placeholder="Enter amount"
        disabled={!address}
      />

      <button
        onClick={handleDeposit}
        disabled={isProcessing || !address}
        className="deposit-button"
      >
        {isProcessing ? 'Processing...' : 'Deposit'}
      </button>
    </div>
  );
};

​
3. Setup App Component

import { WagmiProvider } from 'wagmi';
import { QueryClient, QueryClientProvider } from '@tanstack/react-query';
import { AarcFundKitModal } from '@aarc-xyz/fundkit-web-sdk';
import { AarcEthWalletConnector } from '@aarc-xyz/eth-connector';
import { aarcConfig } from './config/aarcConfig';
import { DepositComponent } from './components/DepositComponent';

const queryClient = new QueryClient();

function App() {
  const aarcModalRef = useRef(new AarcFundKitModal(aarcConfig));
  const aarcModal = aarcModalRef.current;

  return (
    <QueryClientProvider client={queryClient}>
      <WagmiProvider config={wagmiConfig}>
        <AarcEthWalletConnector aarcWebClient={aarcModal}>
          <DepositComponent aarcModal={aarcModal} />
        </AarcEthWalletConnector>
      </WagmiProvider>
    </QueryClientProvider>
  );
}

​
User Flow

  1. User connects their wallet
  2. User enters the amount they want to deposit
  3. User clicks the “Deposit” button
  4. Aarc modal opens showing available payment options
  5. User selects their preferred payment method
  6. Transaction is processed cross-chain
  7. Funds are deposited to the destination contract

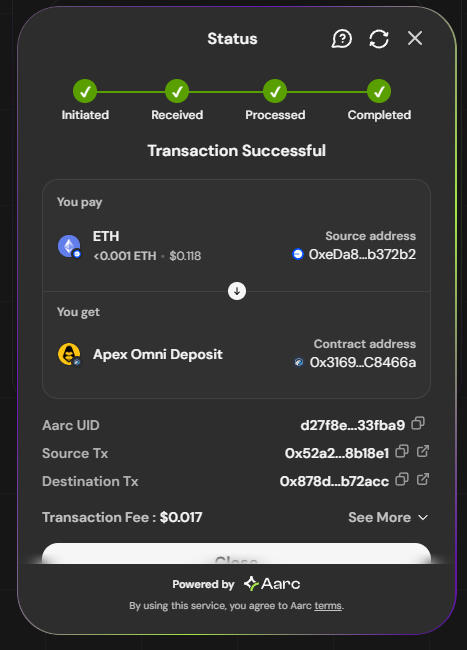

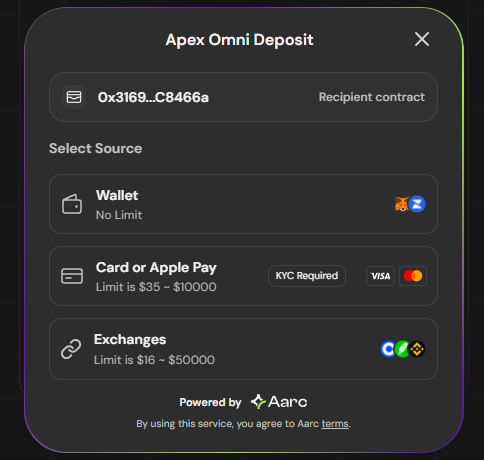

Minting in Progress User selecting payment method in Aarc modal Minting Complete Successfully depositing funds cross-chain

​
Example Implementation

You can find a complete working example at:

​
Support

For additional queries contact support:
